PRODUCT DESIGN
PRODETEC | PHOTOGRAMMETRY CAMERA

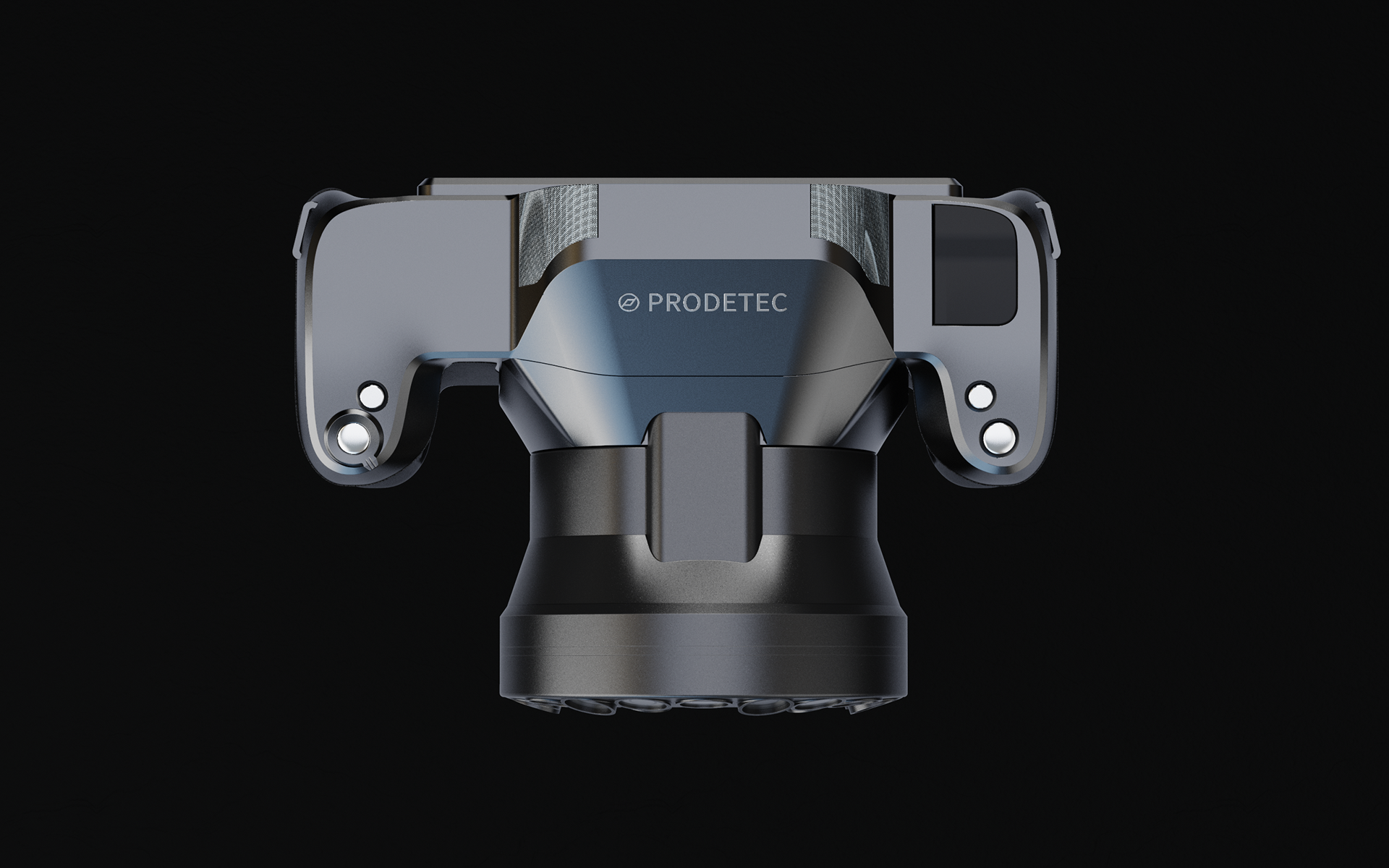

Photogrammetry cameras are indispensable tools in the construction and real estate industries, enabling the rapid and accurate creation of 3D maps and models of objects and environments. However, most existing models are bulky, heavy, and industrial in appearance—highlighting the need for a more user-friendly, human-centric design.

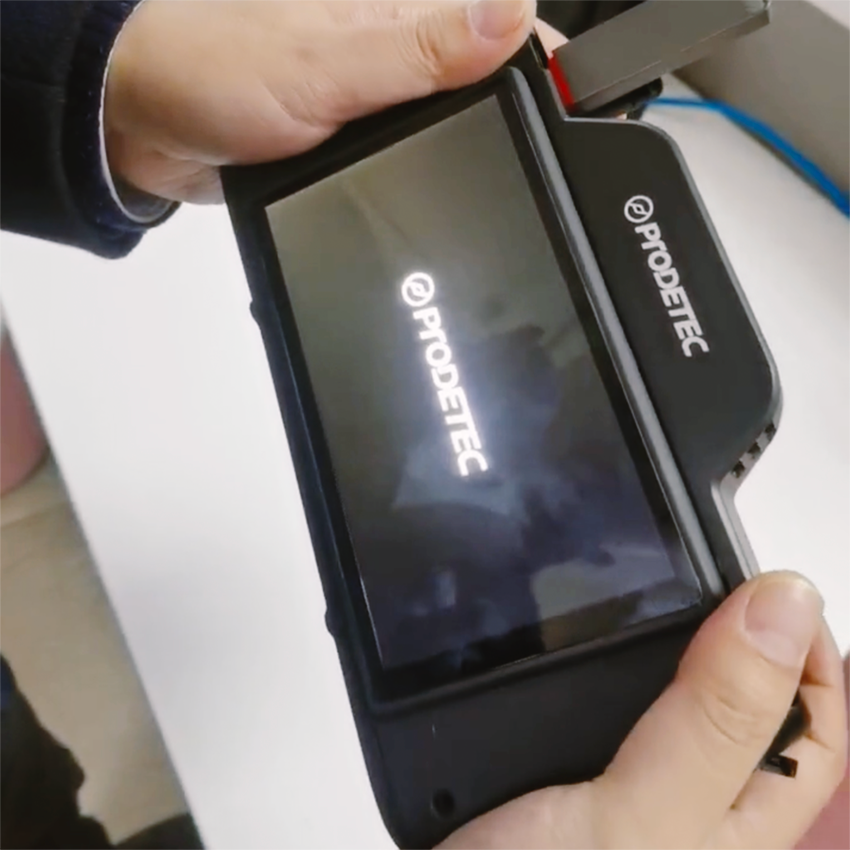

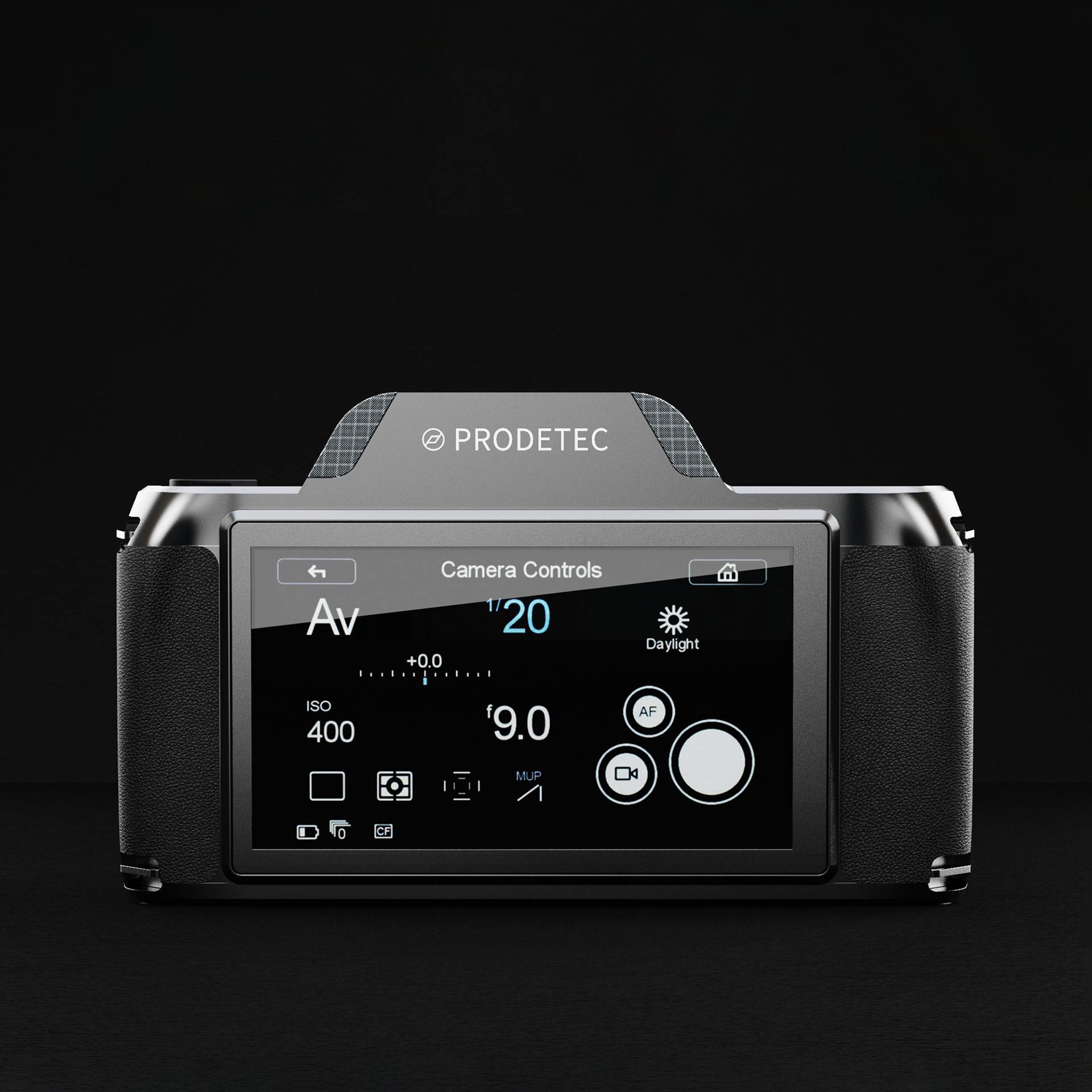

A key challenge in developing an upgraded version of the camera was preserving a tightly constrained internal architecture while enhancing usability and simplifying operation. To achieve this, an LCD touchscreen was introduced as the primary user interface, complemented by essential connection ports including a fiber-optic interface, Wi-Fi antenna port, USB 3.0, and an 8-core aviation connector.

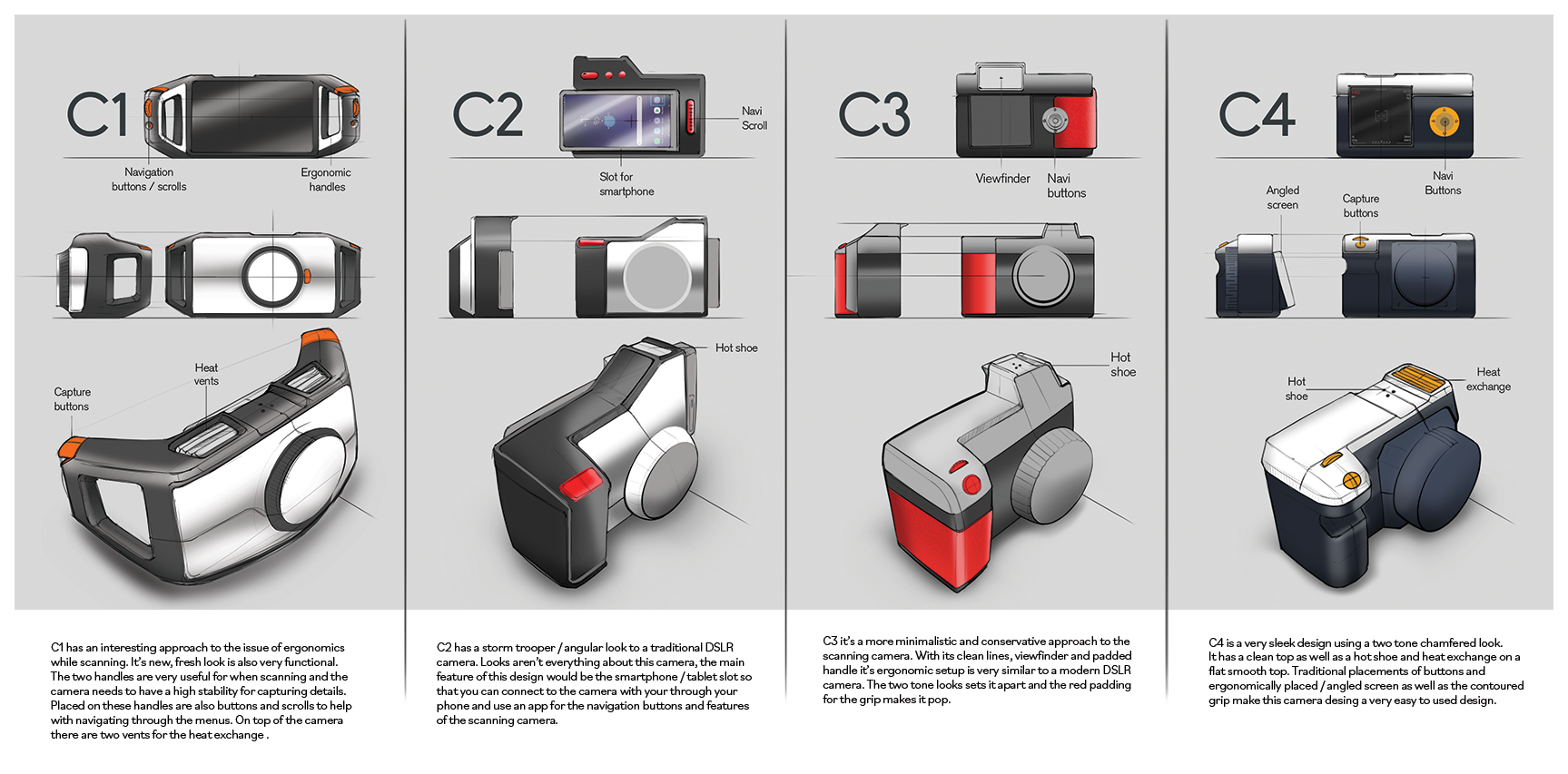

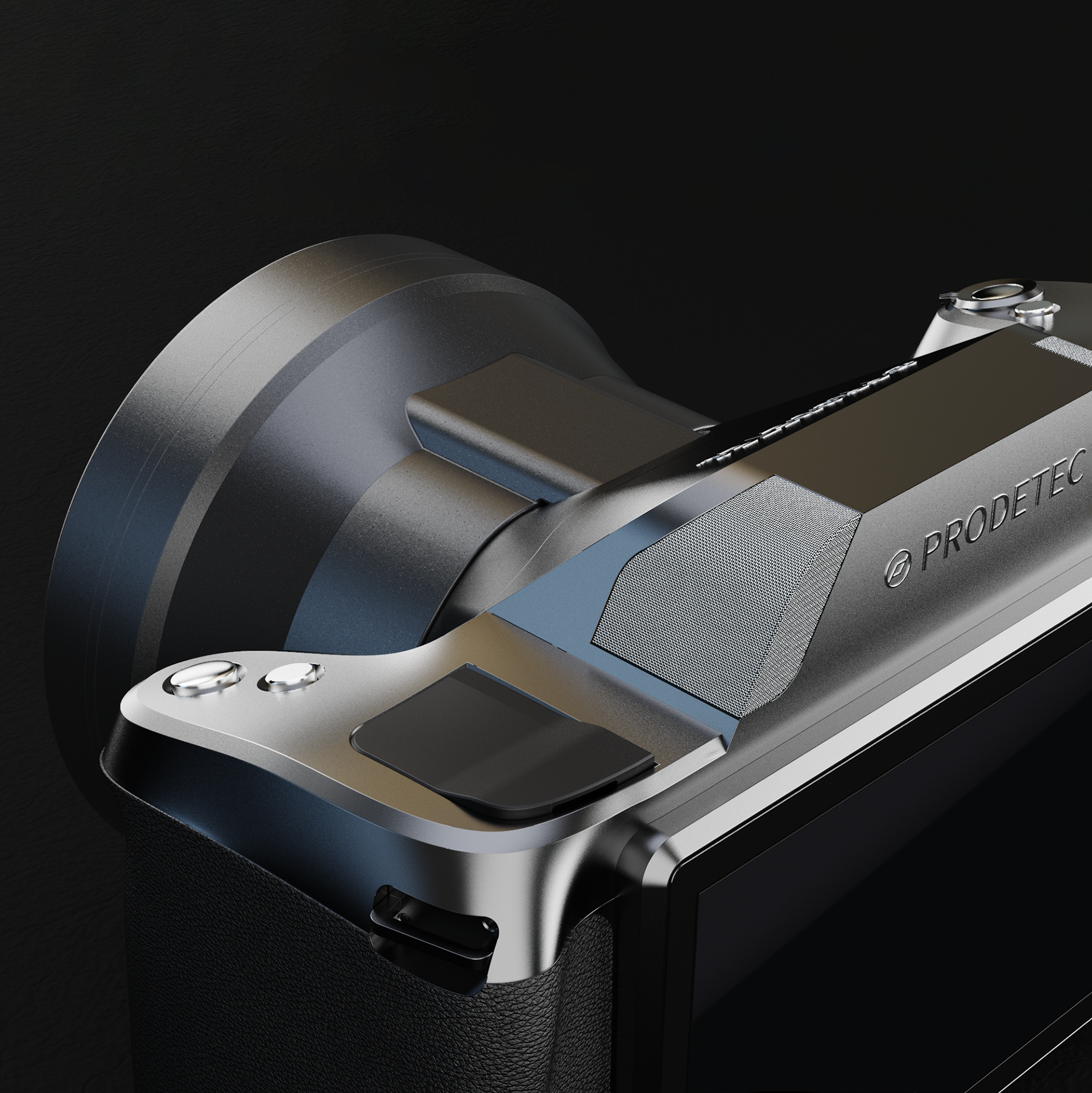

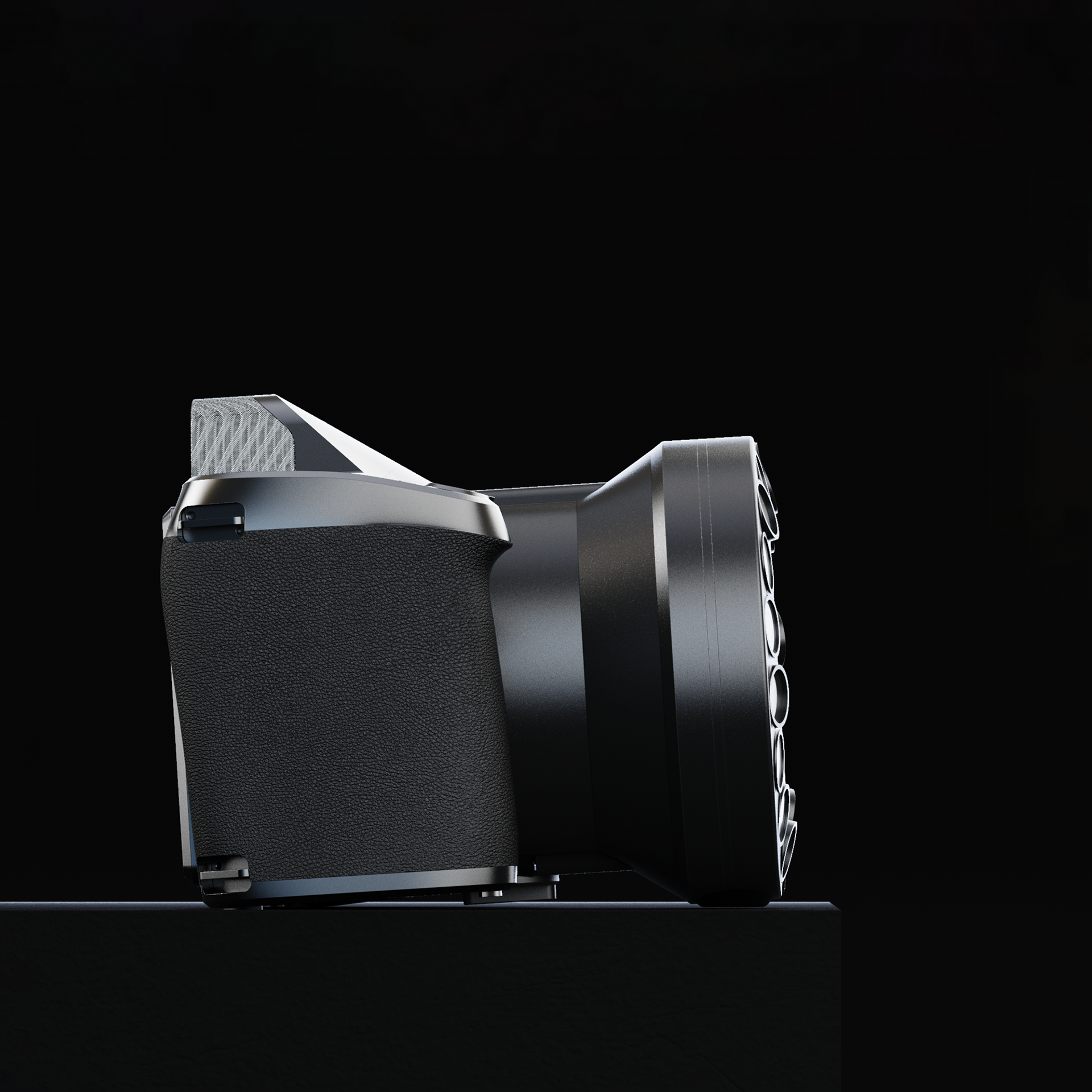

The compact width of the device presented further ergonomic challenges, especially when integrating dual grips with shutter and laser activation buttons. Prioritizing function over symmetry, the design drew inspiration from traditional SLR cameras, resulting in a smaller, lighter unit with more intuitive controls.

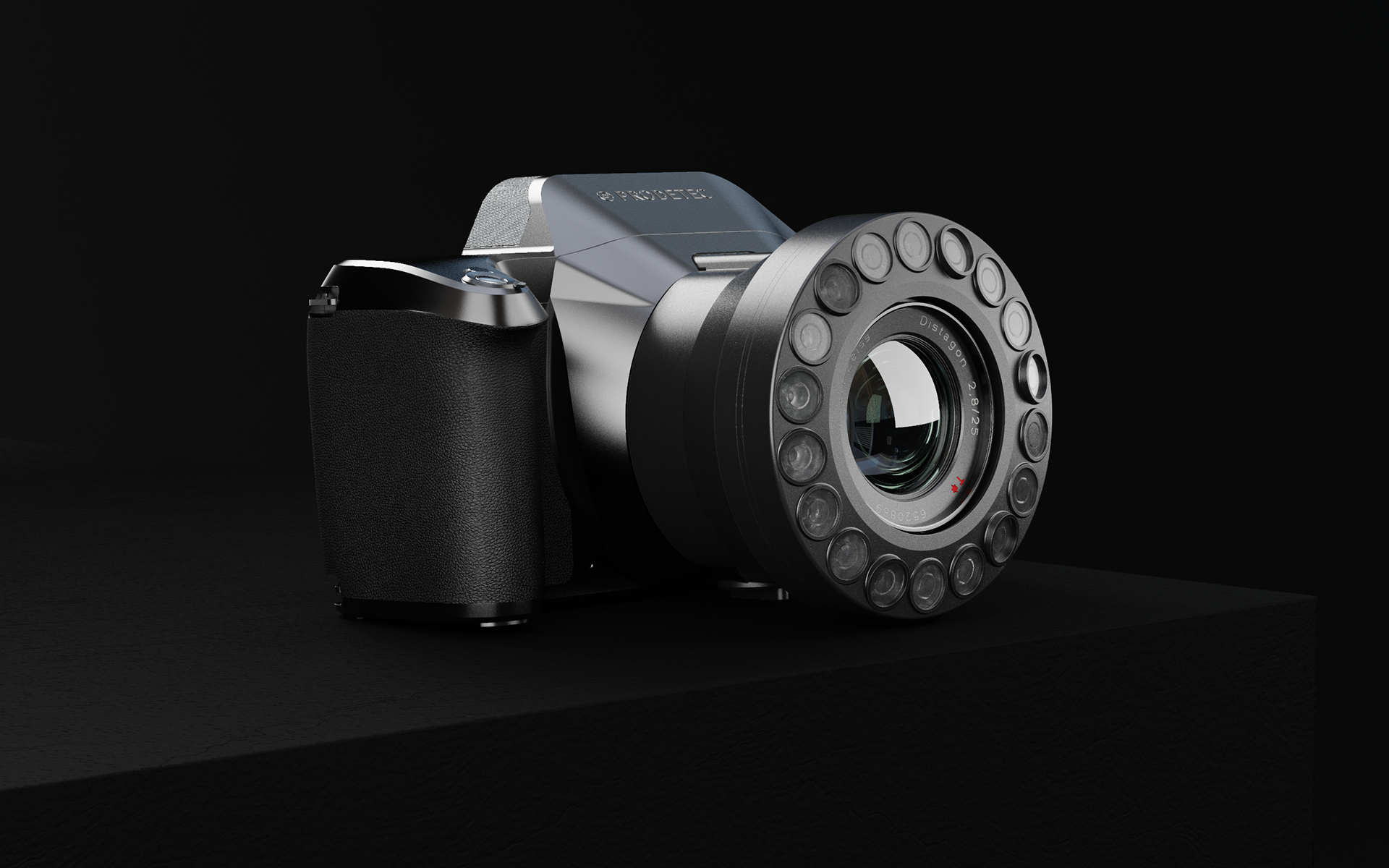

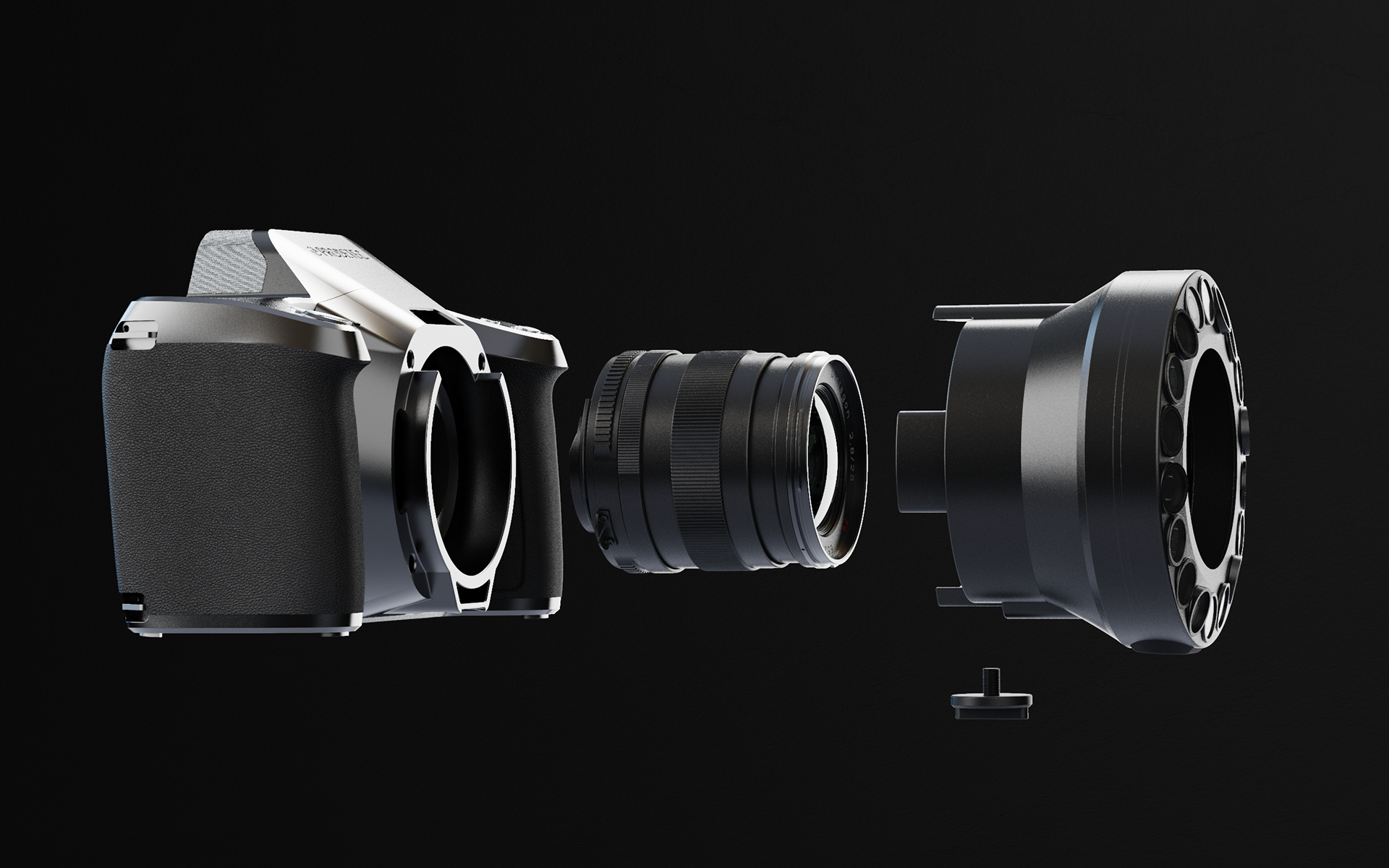

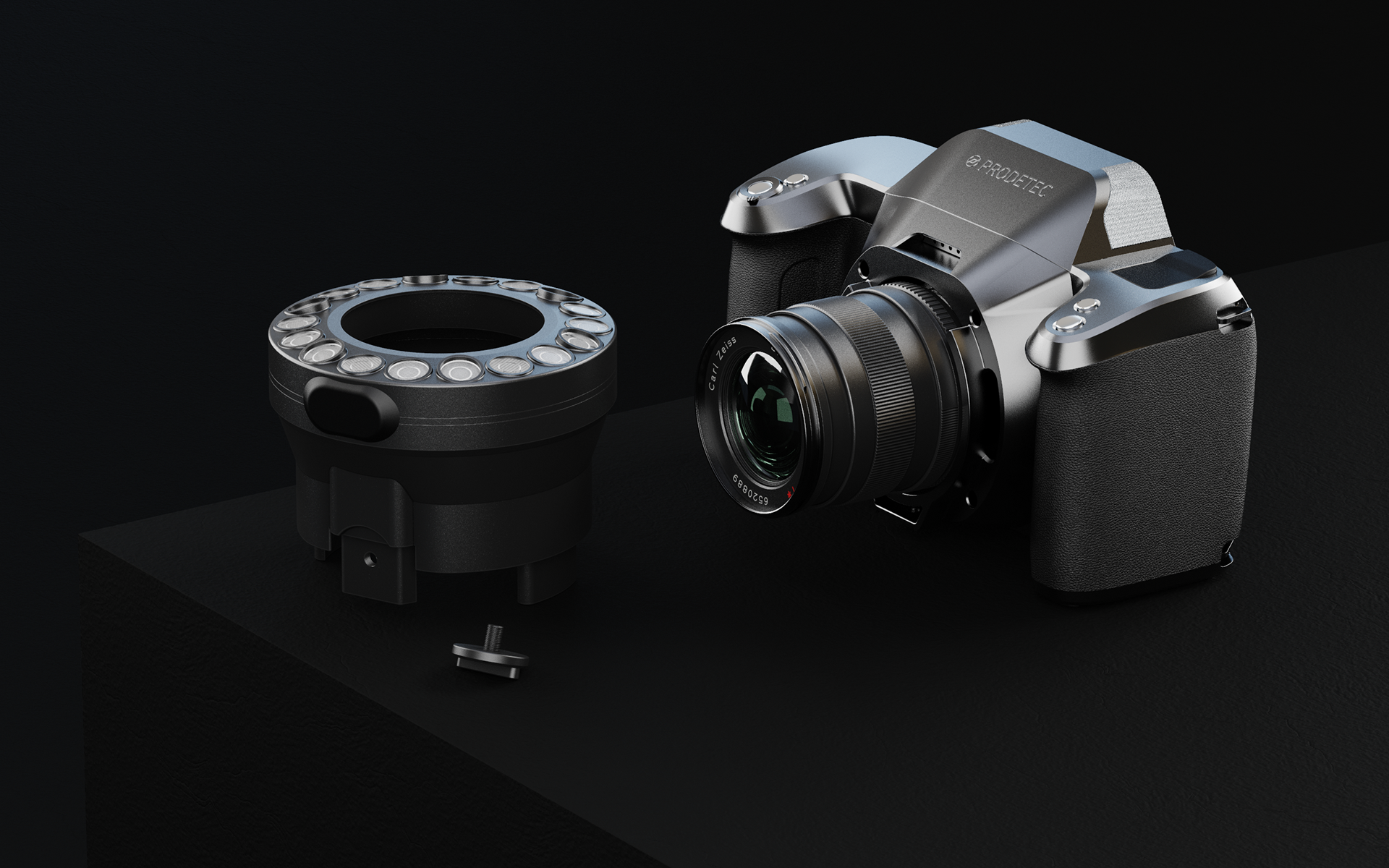

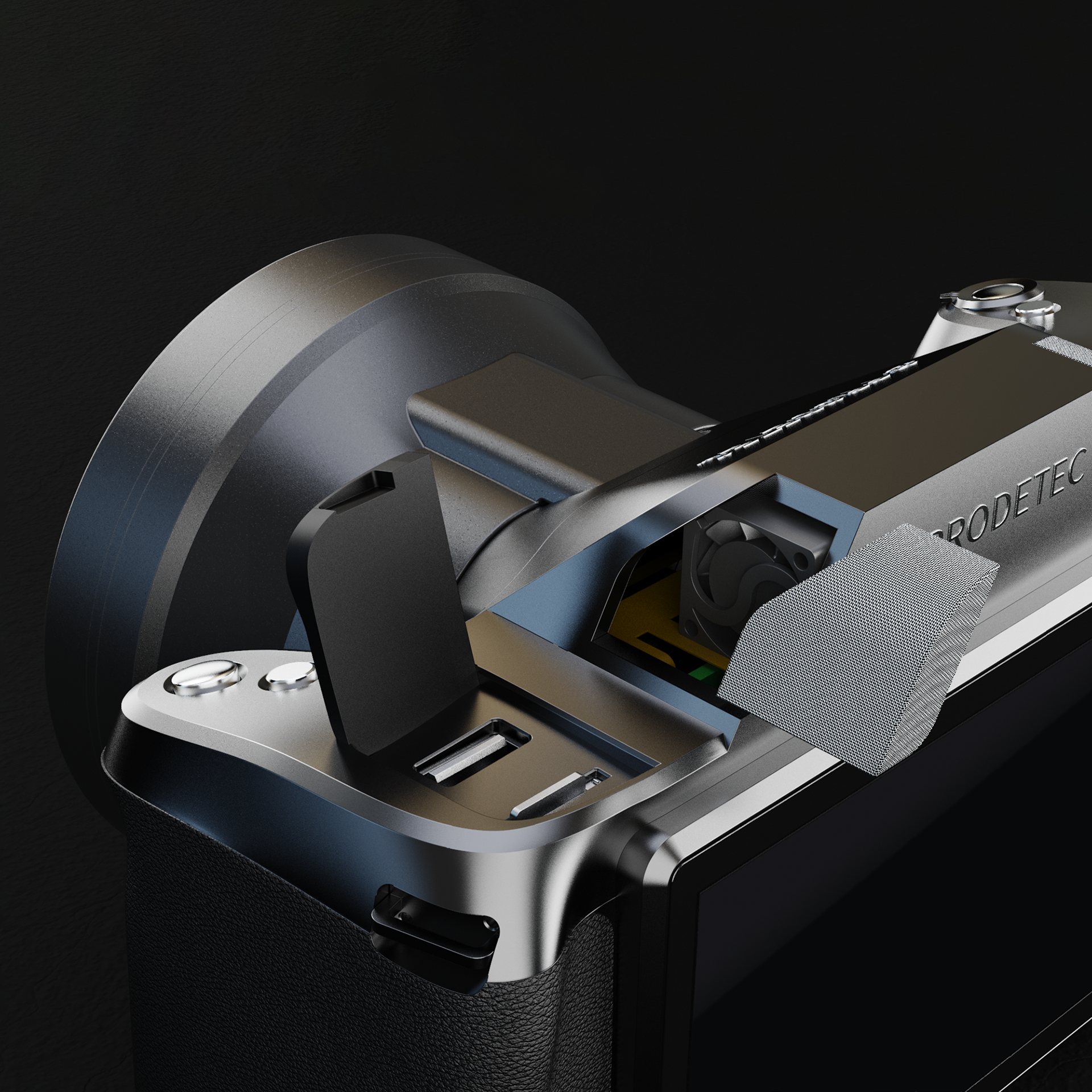

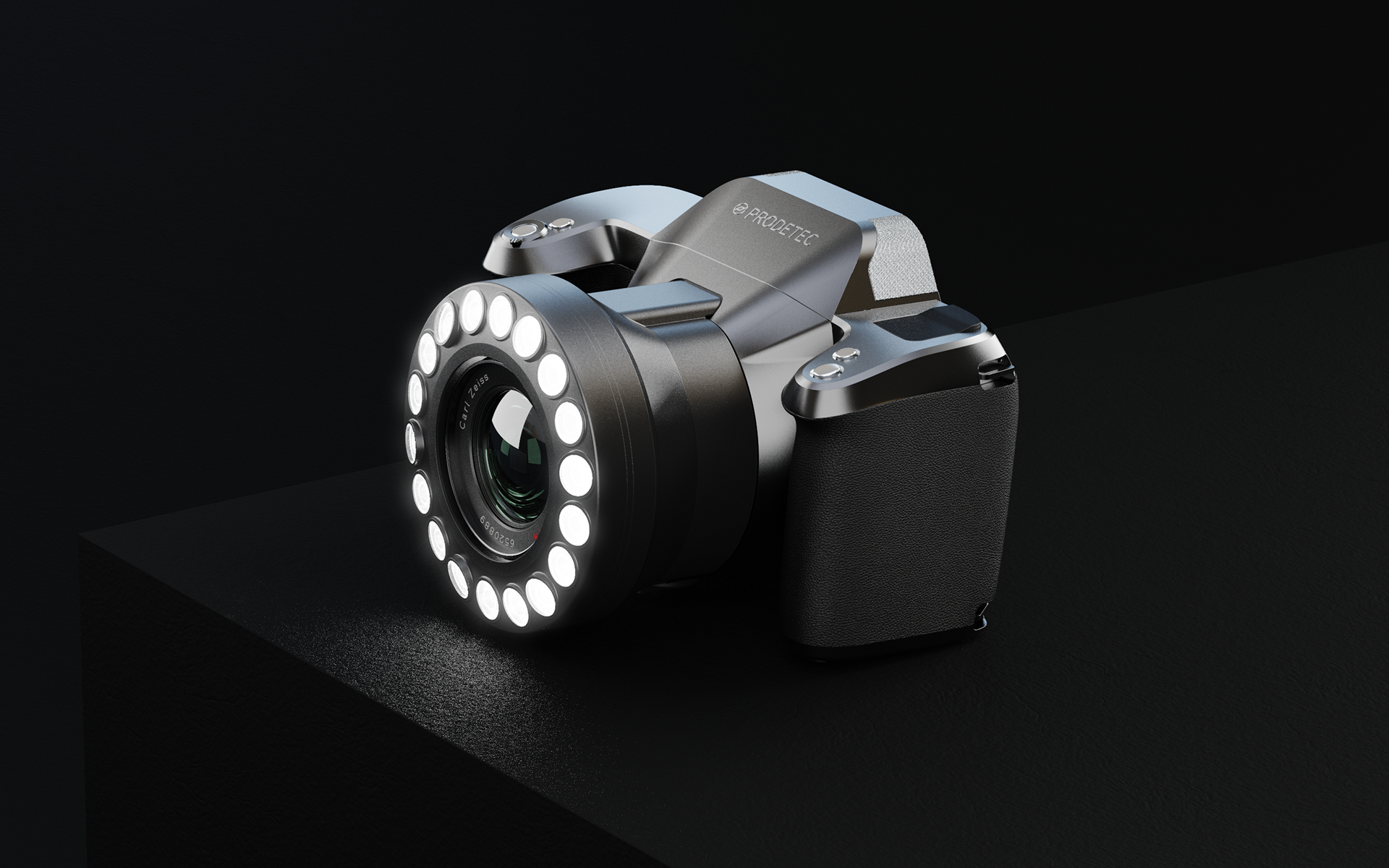

One of the standout features of the redesign is the integrated 360-degree over-the-lens flash, which remains attached during use and is only removed for maintenance. To reduce manufacturing costs, a pre-existing LED front module was incorporated. Additionally, to address thermal management, extra fans were installed on the top of the device, with easy access provided for filter replacement.
Overall, the new design marks a substantial improvement over its predecessor—prioritizing user experience, streamlined functionality, and high-performance operation without compromising on the technical integrity of the camera.
A key challenge in developing an upgraded version of the camera was preserving a tightly constrained internal architecture while enhancing usability and simplifying operation. To achieve this, an LCD touchscreen was introduced as the primary user interface, complemented by essential connection ports including a fiber-optic interface, Wi-Fi antenna port, USB 3.0, and an 8-core aviation connector.
The compact width of the device presented further ergonomic challenges, especially when integrating dual grips with shutter and laser activation buttons. Prioritizing function over symmetry, the design drew inspiration from traditional SLR cameras, resulting in a smaller, lighter unit with more intuitive controls.
One of the standout features of the redesign is the integrated 360-degree over-the-lens flash, which remains attached during use and is only removed for maintenance. To reduce manufacturing costs, a pre-existing LED front module was incorporated. Additionally, to address thermal management, extra fans were installed on the top of the device, with easy access provided for filter replacement.
Overall, the new design marks a substantial improvement over its predecessor—prioritizing user experience, streamlined functionality, and high-performance operation without compromising on the technical integrity of the camera.
